Monday, February 07, 2005

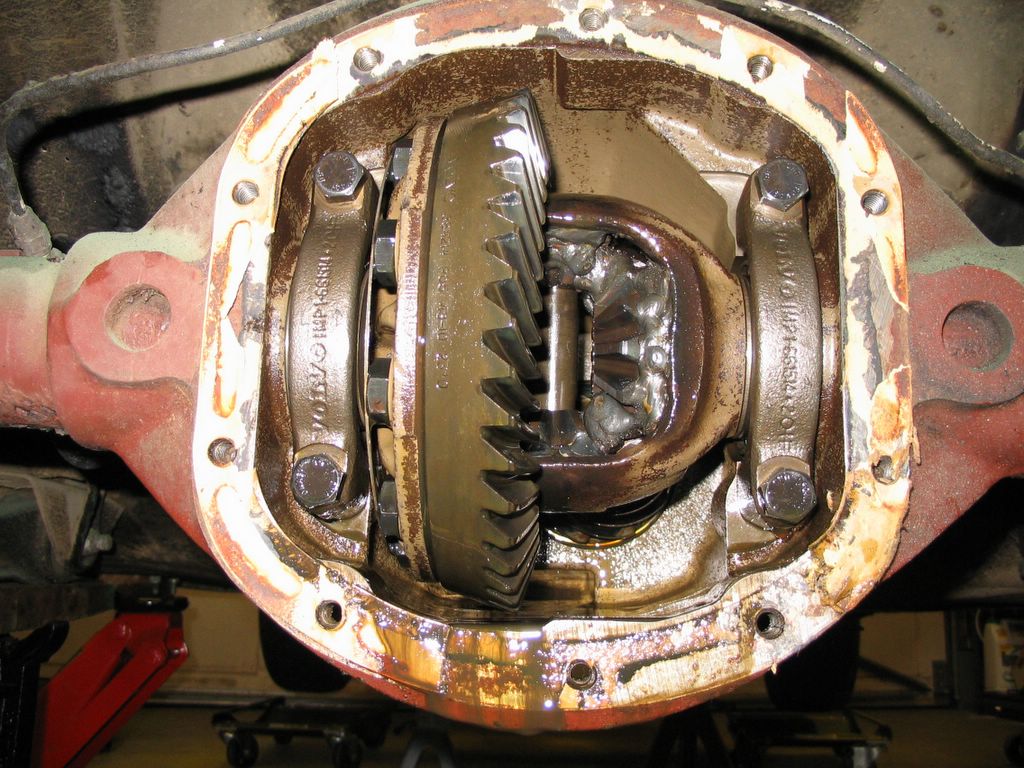

Here's the old rear end with the cover off. Note the welded diff. Posted by Hello

# posted by Nick @ 11:01 PM 0 comments


Final Drive

Starting work on the final drive. Plan to remove the old welded-up differential and the 43:10 ring & pinion and install TrueTrac lsd and shorter ring & pinion.

# posted by Nick @ 10:59 PM 0 comments


This used to be a driveshaft support. Posted by Hello

# posted by Nick @ 10:58 PM 0 comments

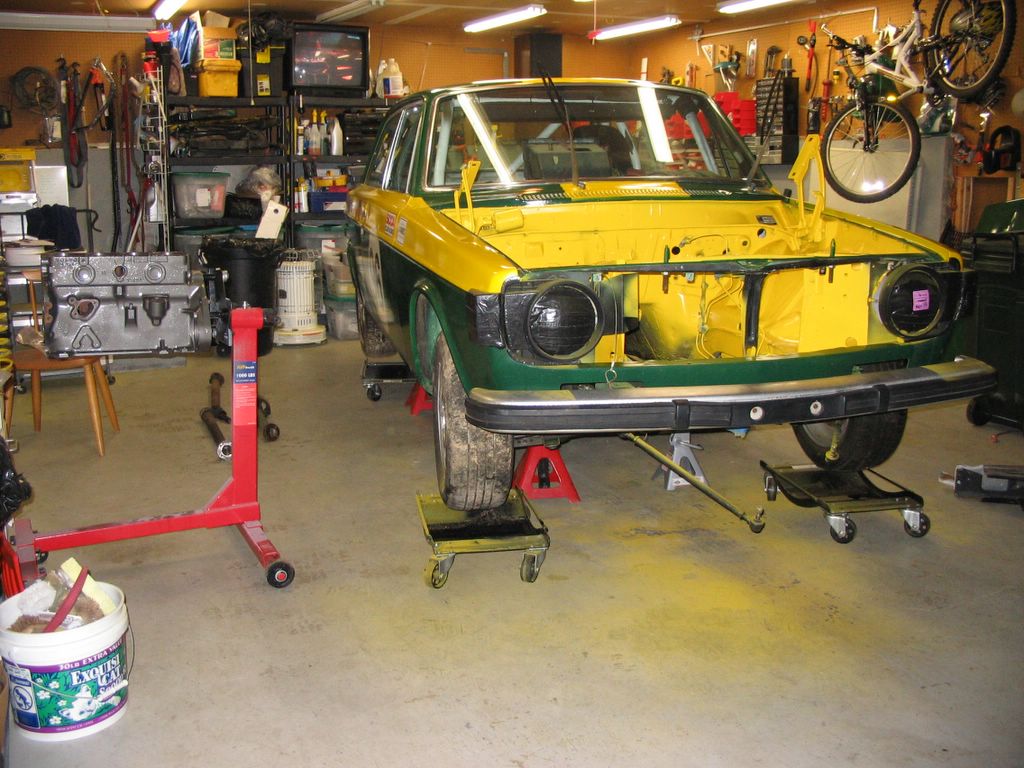

Here she is, all jacked up for work on her driveline. That's the superbowl half time show on the TV. Posted by Hello

# posted by Nick @ 10:56 PM 0 comments


Original driveshaft - top, longer replacement - bottom Posted by Hello

# posted by Nick @ 10:54 PM 0 comments


Driveshaft Replacement

Took the driveshaft off. We'll be putting a longer one on, to account for the non-overdrive gearbox we'll be using. The rubber driveshaft support was completely rotted away (see pictures).

# posted by Nick @ 10:48 PM 0 comments


Other side of engine Posted by Hello

# posted by Nick @ 10:46 PM 0 comments

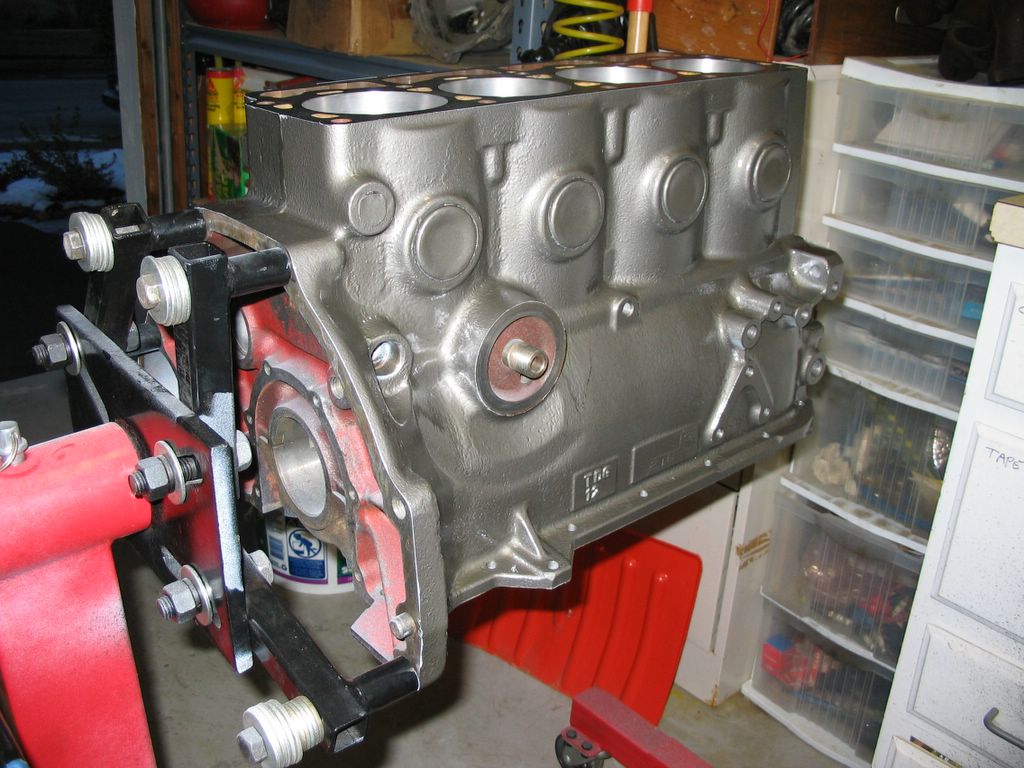

Engine block, nicely primed, painted and clear-coated Posted by Hello

# posted by Nick @ 10:44 PM 0 comments
